Car connection

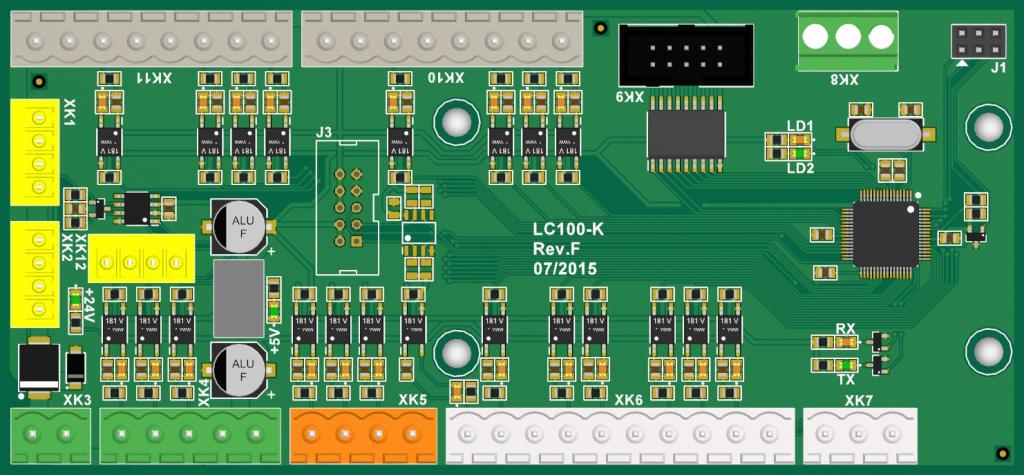

LC100-K
Power Supply: 24 Vdc
description
LC100-K is input/output unit for elevator cabin signals.
PCB holder for TS 35 mounting rail or panel mounting is available.
Order data: LC100-KXX-GXXXXX
features
- CAN BUS serial communication
- 21 programmable optocoupler inputs with configurable input polarity (normally open/normally closed)
- 8 programmable transistor outputs with configurable output polarity (normal/inverted)
- All signals are to be connected using connectors
dimensions
- Board dimensions: 155x72 mm
