Dot Matrix

LC100-M5

Display Type: Dot Matrix
Display Size: 46x39 mm
Number of Dots: 10x7

description

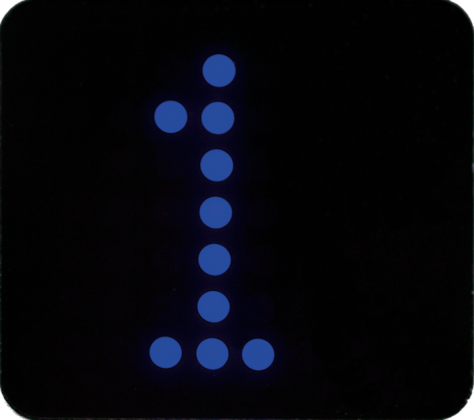

LC100-M5 is a dot matrix display, dimensions 46x39 mm, resolution 10x7, available in 3 colours (red, blue, white) and with 2 connector types (vertical, right angle).

Display NameDisplay ColourConnector Type
LC100-M5R-X1XRXXRedVertical
LC100-M5R-X1XVXXRedRight Angle
LC100-M5B-X1XRXXBlueVertical
LC100-M5B-X1XVXXBlueRight Angle
LC100-M5W-X1XRXXWhiteVertical
LC100-M5W-X1XVXXWhiteRight Angle



features
  • CAN BUS serial communication
  • Up/down landing calls and speaker connectivity
  • Configurable optical signalization options (car position, car travel direction, car next travel direction, car overload, photocell active or landing door open for too long, stop button active, fire service mode, landing calls disabled, elevator out of order)
  • Configurable sound signalization options (car arrival, landing door unlocked, car overload, photocell active or landing door open for too long, stop button active, call button pressed)
dimensions

Display depth (using right angle connectors): 15 mm
Display depth (using vertical connectors): 30 mm
