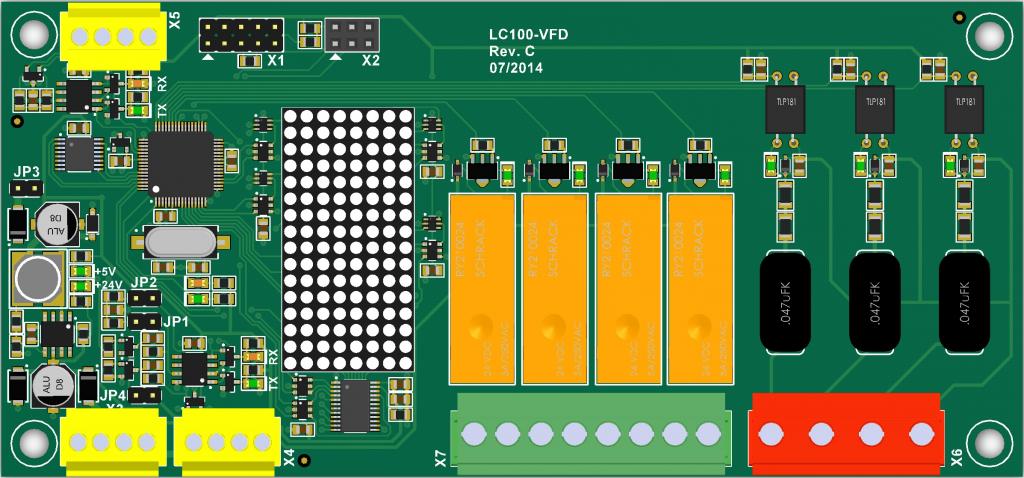

LC100-VFD is relay and CAN bridge board used for connecting 3rd party CAN devices, most commonly frequency inverters or absolute positioning systems. It is also used for phase sequence/failure detection and actual car speed/direction indication.

It is shipped with a PCB holder for TS 35 mounting rail.

Order data: LC100-VFD-GXXXXX

• 2 independent CAN BUS serial communication channels
• 4 programmable relay outputs with configurable output polarity (normal/inverted)
• Phase sequence and phase failure detection
• Actual car speed and direction indication using dot-matrix display with configurable orientation

• Board dimensions: 155x72 mm
• PCB holder dimensions: 152x82 mm
